libco Source Notes (3): Automatic Switching
In the previous post, libco Source Notes (2): Explicit Switching, we covered the explicit coroutine switching interfaces that libco provides, and discussed how to use a coroutine pool. This post covers the interfaces libco provides for automatic switching. I suggest reading it together with my annotated version.
Background of Automatic Switching
In Li Fangyuan’s libco talk$^{[2]}$, he explains that before libco, most network communication in WeChat used synchronous IO interfaces. To quickly adapt the existing business code, libco hooks system calls and provides coroutine-based primitives such as poll, read and write. Because of how coroutines work, a system call that used to block now behaves as if it were non-blocking.
Timeout Management
libco needs to manage events that require timeouts, such as network IO and condition variables, in one place. For this, it implements a timeout manager based on a timing wheel. Before I cover how libco hooks system calls, let’s lay some groundwork on how this timeout manager is implemented.
As Figure 1 shows, the timing wheel is the dark red wheel-shaped array in the figure. we call each cell of the array a slot. A single slot stores the list of events registered within a certain period of time (the yellow linked lists in the figure). In libco, one slot has a precision of 1 millisecond. The whole wheel has 60000 slots, so it covers 60 seconds. The timing wheel has two main interface functions in libco, shown below.
AddTimeout computes the difference between the current time allNow and the wheel start time ullStart, and inserts the item into the matching slot. Note that when the timeout is longer than the wheel length of 60 seconds, libco inserts the event into the “last” slot.
TakeAllTimeout computes the difference between the current time allNow and the wheel start time ullStart to find the matching slot. It then walks all slots from the slot at the start index ullStartIdx up to that slot, and moves the timed-out items into the result list apResult.
With this, we can see that libco uses the timing wheel to manage timeout events efficiently.
/* Insert a new item into the timing wheel
* @param
* apTimeout :timing wheel structure
* apItem :new timeout item
* allNow :current time (timestamp in ms)
* @return :0 on success, else the failure line number
*/
int AddTimeout( stTimeout_t *apTimeout,stTimeoutItem_t *apItem ,unsigned long long allNow );
/* Take all timeout items out of the timing wheel
* @param
* apTimeout:timing wheel structure
* allNow :current time (timestamp in ms)
* apResult :result list of timeout events
*/
inline void TakeAllTimeout( stTimeout_t *apTimeout,unsigned long long allNow,stTimeoutItemLink_t *apResult );

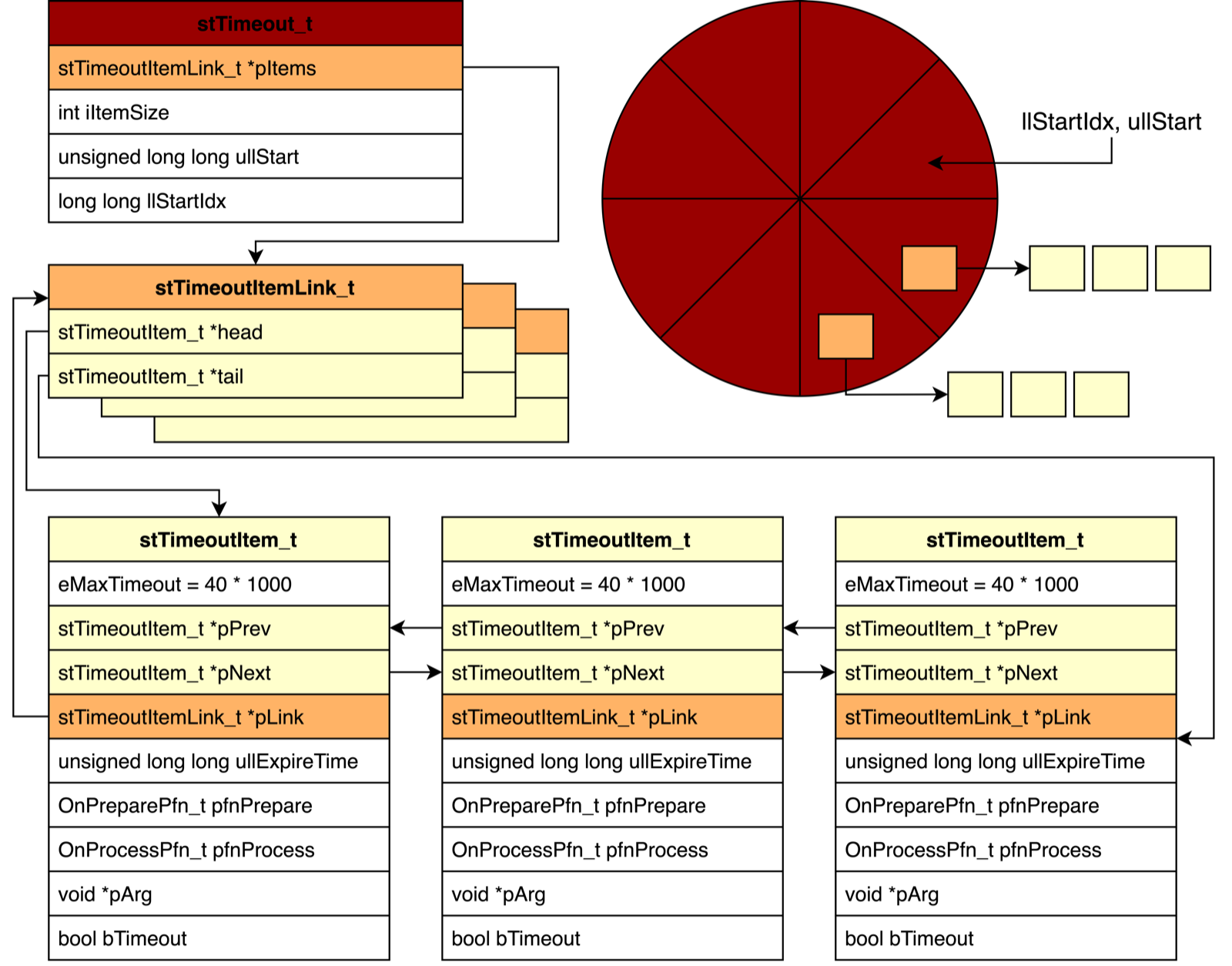

Figure 1. Timeout management
Event Loop
libco manages IO events with epoll. co_eventloop triggers the IO events and switches to the matching coroutine to run it. Recall the thread-private global variable stCoRoutineEnv_t mentioned earlier, which represents the coroutine runtime environment. It holds the epoll structure handle pEpoll:
struct stCoRoutineEnv_t
{
stCoRoutine_t *pCallStack[ 128 ]; //call stack of all coroutines
int iCallStackSize; //index of the top of pCallStack
stCoEpoll_t *pEpoll; //epoll wrapper
//for copy stack log lastco and nextco
stCoRoutine_t* pending_co;
stCoRoutine_t* occupy_co; //current coroutine
};
stCoEpoll_t is defined as follows:
struct stCoEpoll_t
{
int iEpollFd; //EpollFd
static const int _EPOLL_SIZE = 1024 * 10; //max number of events returned by one epoll_wait call
struct stTimeout_t *pTimeout; //timing wheel, timeout management
struct stTimeoutItemLink_t *pstTimeoutList; //list of timed-out items
struct stTimeoutItemLink_t *pstActiveList; //list of ready items
co_epoll_res *result; //epoll_wait result
};
The main event loop code is as follows,
$L11$ blocks on epoll_wait with a timeout of 1 millisecond. This epoll_wait is not hooked. It is the native system call.
$L13-L29$ takes out all events in result->events, runs the prepare function pfnPrepare, and adds them to the active list.
$L32-L42$ takes out all timeout events and adds them to the active list.
$L59$ calls the process function pfnProcess for every event in the active list.
$L66$ checks whether the event loop needs to exit:
/* Event loop
* @param
* ctx:epoll handle
* pfn:function that checks whether to exit the event loop
* arg:argument of pfn
*/
void co_eventloop( stCoEpoll_t *ctx,pfn_co_eventloop_t pfn,void *arg )
{
if( !ctx->result )
{
ctx->result = co_epoll_res_alloc( stCoEpoll_t::_EPOLL_SIZE );
}
co_epoll_res *result = ctx->result;
for(;;)
{
int ret = co_epoll_wait( ctx->iEpollFd,result,stCoEpoll_t::_EPOLL_SIZE, 1 );
stTimeoutItemLink_t *active = (ctx->pstActiveList);
stTimeoutItemLink_t *timeout = (ctx->pstTimeoutList);
memset( timeout,0,sizeof(stTimeoutItemLink_t) ); //clear the timeout queue
for(int i=0;i<ret;i++) //walk the fds that have events
{
stTimeoutItem_t *item = (stTimeoutItem_t*)result->events[i].data.ptr; //get the stTimeoutItem_t that the event data points to
if( item->pfnPrepare ) //if there is a prepare function, run it; it adds the item to the ready list
{
item->pfnPrepare( item,result->events[i],active );
}
else //add to the ready list manually
{
AddTail( active,item );
}
}
unsigned long long now = GetTickMS();
TakeAllTimeout( ctx->pTimeout,now,timeout ); //insert the timed-out items into the timeout list
stTimeoutItem_t *lp = timeout->head;
while( lp )
{
//printf("raise timeout %p\n",lp);
lp->bTimeout = true; //mark as timed out
lp = lp->pNext;
}
Join<stTimeoutItem_t,stTimeoutItemLink_t>( active,timeout ); //merge the timeout list into the ready list
lp = active->head;
while( lp )
{
PopHead<stTimeoutItem_t,stTimeoutItemLink_t>( active );
if (lp->bTimeout && now < lp->ullExpireTime) //marked as timed out but the expire time is not reached yet, add it back to the timing wheel
{
int ret = AddTimeout(ctx->pTimeout, lp, now);
if (!ret)
{
lp->bTimeout = false;
lp = active->head;
continue;
}
}
if( lp->pfnProcess ) //call the process function of the stTimeoutItem_t item
{
lp->pfnProcess( lp );
}
lp = active->head;
}
if( pfn ) //lets the user break out of the event loop
{
if( -1 == pfn( arg ) )
{
break;
}
}
}
}
The Hooked poll
struct pollfd {
int fd; /* file descriptor */
short events; /* requested events */
short revents; /* returned events */
};
int poll(struct pollfd *fds, nfds_t nfds, int timeout);
The original poll function takes the fds and the events of interest events as an array of pollfd. It returns the events that happened in revents. poll also supports a timeout in milliseconds. When timeout is set to a non-zero value (a negative value means forever), the thread blocks in poll until a matching event happens or the timeout expires.
The hooked poll in libco can give up the context when an IO coroutine blocks, and switch to the main coroutine. Most of its code merges and restores the events of identical fds in the pollfd array passed in. The core part of the code is co_poll_inner, shown below:
/* poll core
* @param
* ctx:epoll handle
* fds:fd array
* nfds:length of the fd array
* timeout:timeout in ms
* pollfunc:default poll
*/
int co_poll_inner( stCoEpoll_t *ctx,struct pollfd fds[], nfds_t nfds, int timeout, poll_pfn_t pollfunc)
{
if (timeout == 0) //poll: Specifying a timeout of zero causes poll() to return immediately, even if no file descriptors are ready.
{
return pollfunc(fds, nfds, timeout); //call the native system poll (the upper-level poll has already checked this, so it is not needed here)
}
if (timeout < 0) //poll: Specifying a negative value in timeout means an infinite timeout.
{
timeout = INT_MAX;
}
int epfd = ctx->iEpollFd;
stCoRoutine_t* self = co_self();
//1.struct change
stPoll_t& arg = *((stPoll_t*)malloc(sizeof(stPoll_t))); //allocate a stPoll_t
memset( &arg,0,sizeof(arg) );
arg.iEpollFd = epfd; //link stPoll_t with stCoEpoll_t here
arg.fds = (pollfd*)calloc(nfds, sizeof(pollfd)); //allocate nfds pollfd
arg.nfds = nfds;
stPollItem_t arr[2];
if( nfds < sizeof(arr) / sizeof(arr[0]) && !self->cIsShareStack) //when nfds is less than 2 and the shared stack is not used
{
arg.pPollItems = arr;
}
else
{
arg.pPollItems = (stPollItem_t*)malloc( nfds * sizeof( stPollItem_t ) );
}
memset( arg.pPollItems,0,nfds * sizeof(stPollItem_t) );
arg.pfnProcess = OnPollProcessEvent; //process function, calls co_resume(arg.pArg) to wake up the coroutine that arg.pArg points to
arg.pArg = GetCurrCo( co_get_curr_thread_env() ); //argument of the process function, i.e. the current coroutine
//2. add epoll
for(nfds_t i=0;i<nfds;i++)
{
arg.pPollItems[i].pSelf = arg.fds + i; //link stPollItem_t with pollfd
arg.pPollItems[i].pPoll = &arg; //point to the stPoll_t it belongs to
arg.pPollItems[i].pfnPrepare = OnPollPreparePfn; //set the prepare function
struct epoll_event &ev = arg.pPollItems[i].stEvent;
if( fds[i].fd > -1 ) //fd is valid
{
ev.data.ptr = arg.pPollItems + i; //make stPollItem_t.stEvent.data.ptr point to stPollItem_t
ev.events = PollEvent2Epoll( fds[i].events ); //set stPollItem_t.stEvent.data.events
int ret = co_epoll_ctl( epfd,EPOLL_CTL_ADD, fds[i].fd, &ev ); //add stPollItem_t.stEvent to stCoEpoll_t.iEpollFd
if (ret < 0 && errno == EPERM && nfds == 1 && pollfunc != NULL) //when nfds is 1 and adding to epoll fails, free the temporary stPoll_t
{
if( arg.pPollItems != arr )
{
free( arg.pPollItems );
arg.pPollItems = NULL;
}
free(arg.fds);
free(&arg);
return pollfunc(fds, nfds, timeout); //run the native poll
}
}
//if fail,the timeout would work
}
//3.add timeout
unsigned long long now = GetTickMS();
arg.ullExpireTime = now + timeout;
int ret = AddTimeout( ctx->pTimeout,&arg,now ); //add stPoll_t to the timing wheel of stCoEpoll_t
int iRaiseCnt = 0;
if( ret != 0 )
{
co_log_err("CO_ERR: AddTimeout ret %d now %lld timeout %d arg.ullExpireTime %lld",
ret,now,timeout,arg.ullExpireTime);
errno = EINVAL;
iRaiseCnt = -1;
}
else
{
co_yield_env( co_get_curr_thread_env() ); //give up the CPU and wait for an event in epoll or a timeout
iRaiseCnt = arg.iRaiseCnt; //we are back; before coming back, OnPollPreparePfn has already set iRaiseCnt and revents on stPoll_t, and removed it from the timing wheel
}
{
//clear epoll status and memory
RemoveFromLink<stTimeoutItem_t,stTimeoutItemLink_t>( &arg ); //remove from the timing wheel
for(nfds_t i = 0;i < nfds;i++)
{
int fd = fds[i].fd;
if( fd > -1 )
{
co_epoll_ctl( epfd,EPOLL_CTL_DEL,fd,&arg.pPollItems[i].stEvent ); //remove from epoll
}
fds[i].revents = arg.fds[i].revents; //return the events that have fired
}
if( arg.pPollItems != arr ) //free stPoll_t
{
free( arg.pPollItems );
arg.pPollItems = NULL;
}
free(arg.fds);
free(&arg);
}
return iRaiseCnt;
}
As the figure below shows, the first half of the code, $L1-L90$, wraps the fds in stPoll_t and adds it to the timing wheel timeout manager.
$L91$ gives up the CPU and switches out of the current coroutine.
After $L92$, once the event loop fires, it calls the OnPollProcessEvent set at L41 to switch to the matching coroutine, and then does the cleanup:
void OnPollProcessEvent( stTimeoutItem_t * ap )
{
stCoRoutine_t *co = (stCoRoutine_t*)ap->pArg;
co_resume( co );
}

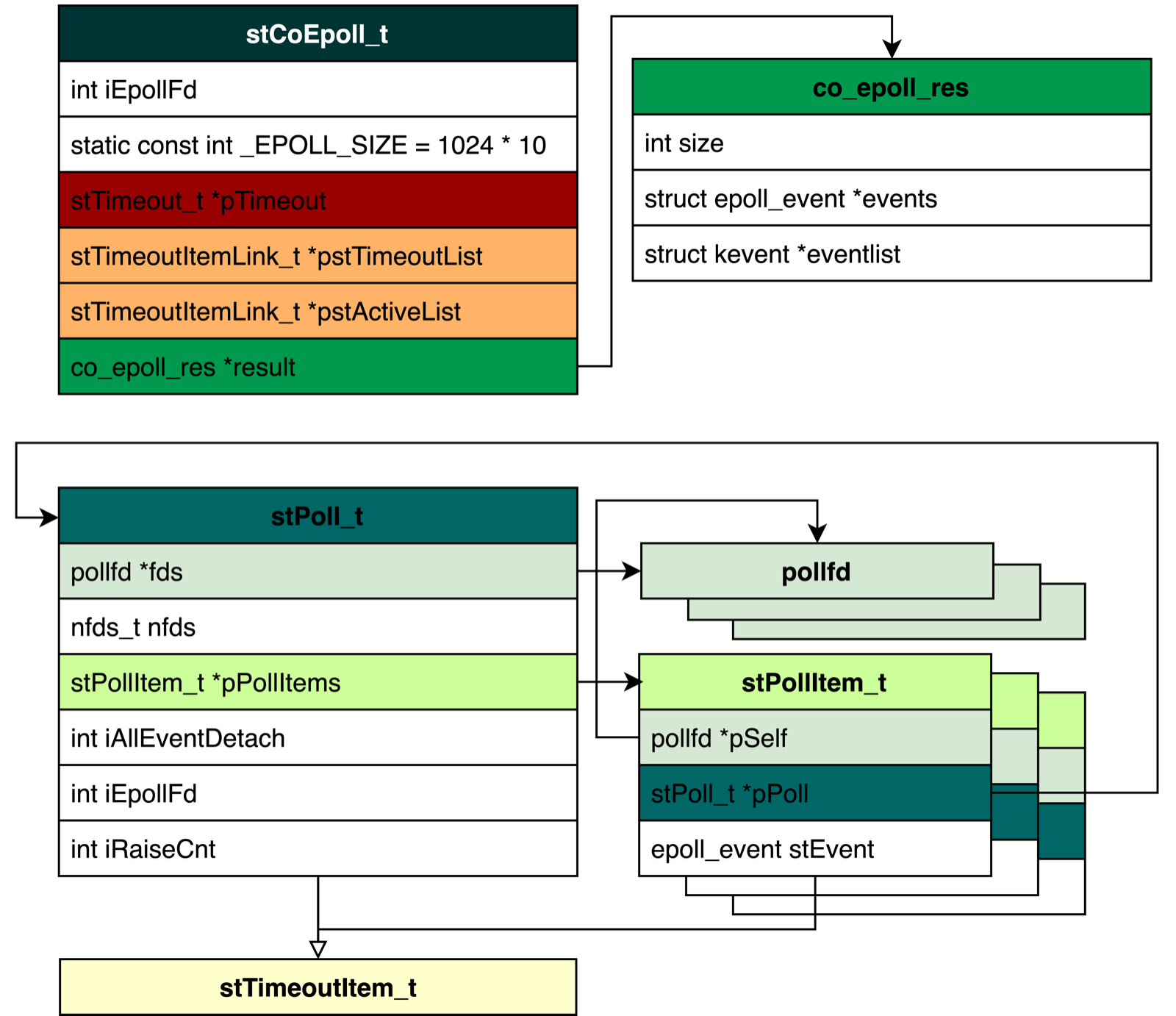

Figure 2. Structures related to poll
Conclusion
This post covered the parts of the libco source code that handle automatic switching. Thank you for reading. If you have any questions or thoughts, or find any mistake in this post, please let me know.
